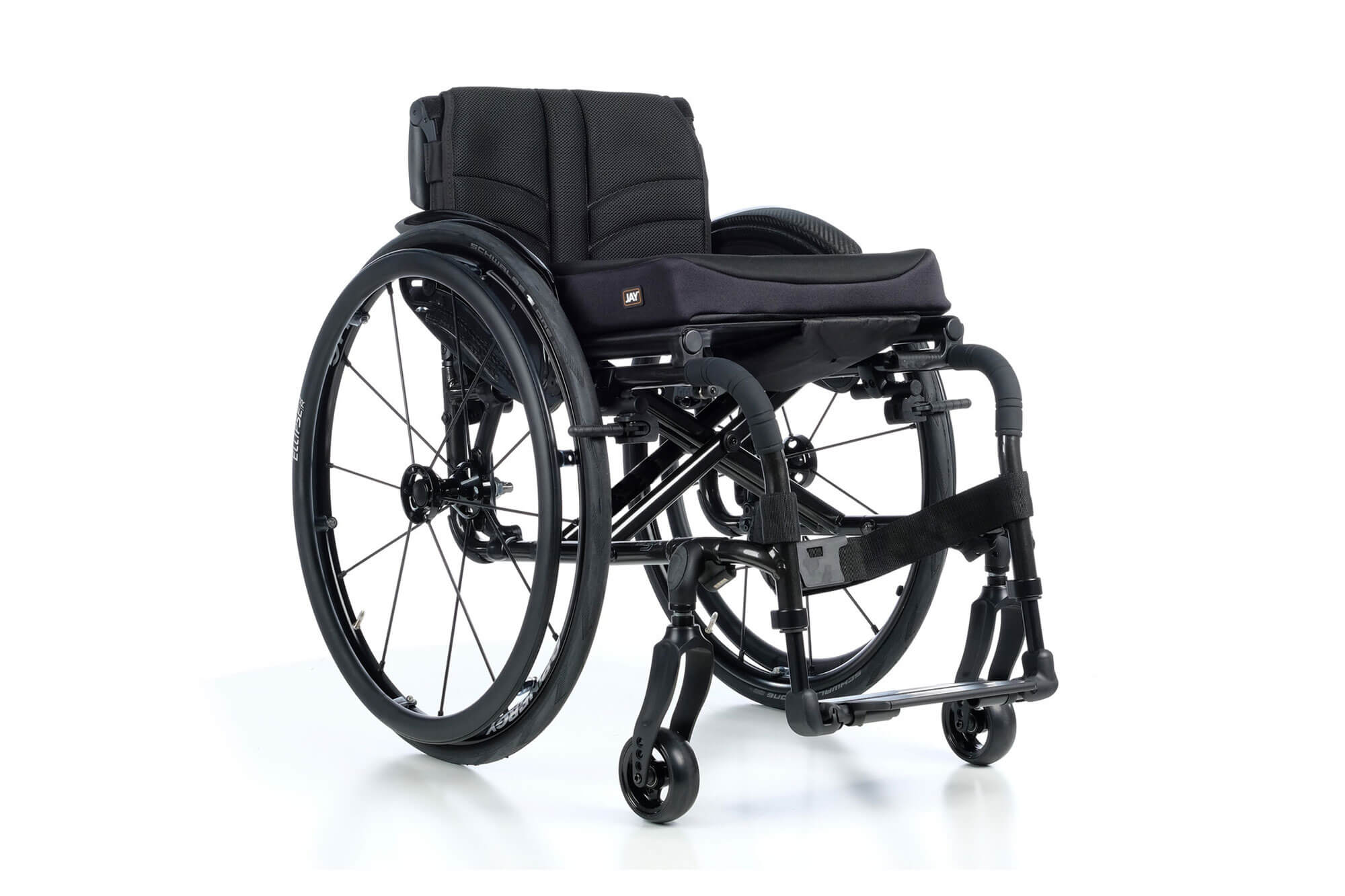

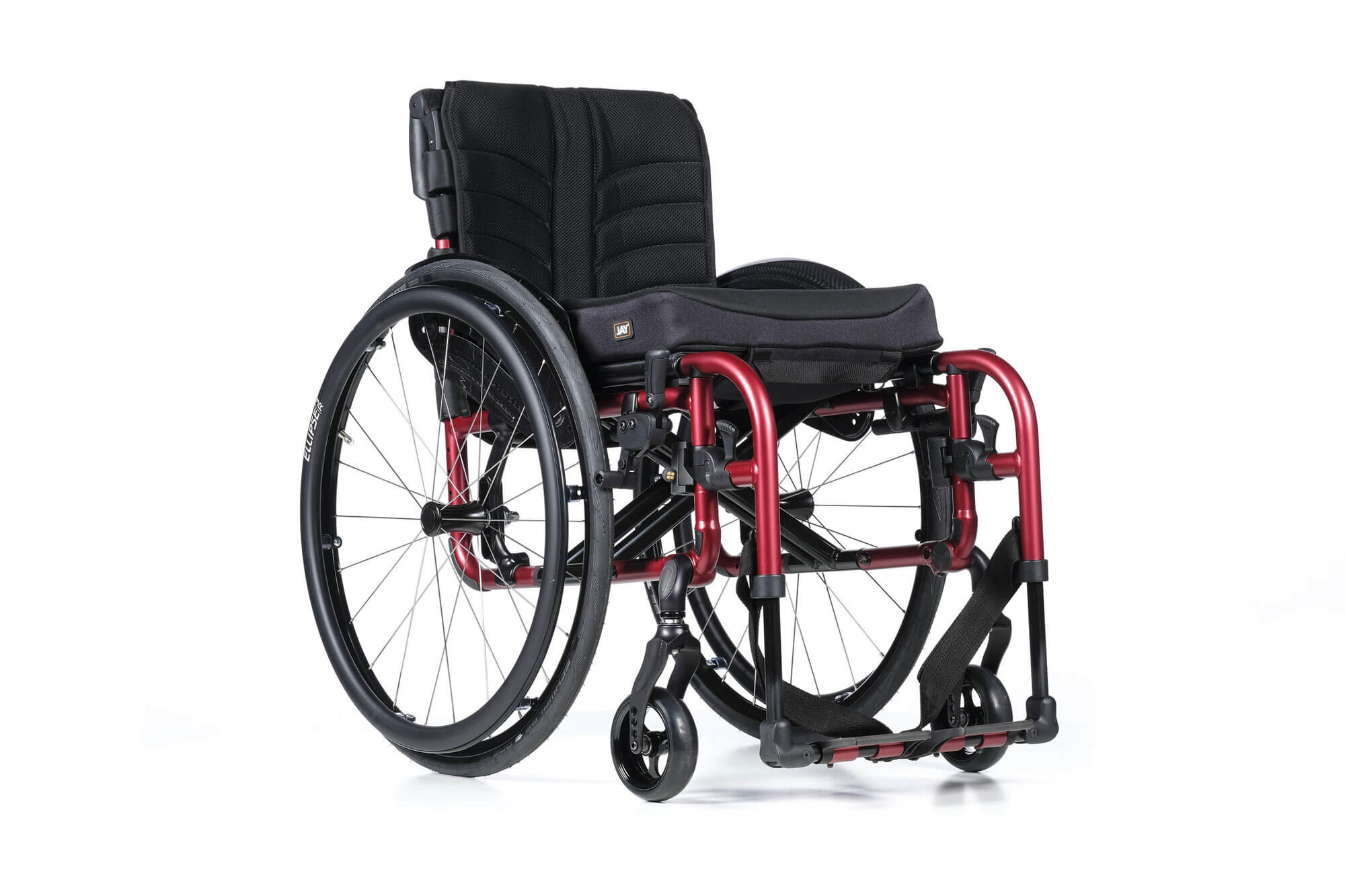

Quickie QS5X Folding Wheelchair
Enquire for price
x
{formbuilder:18141}

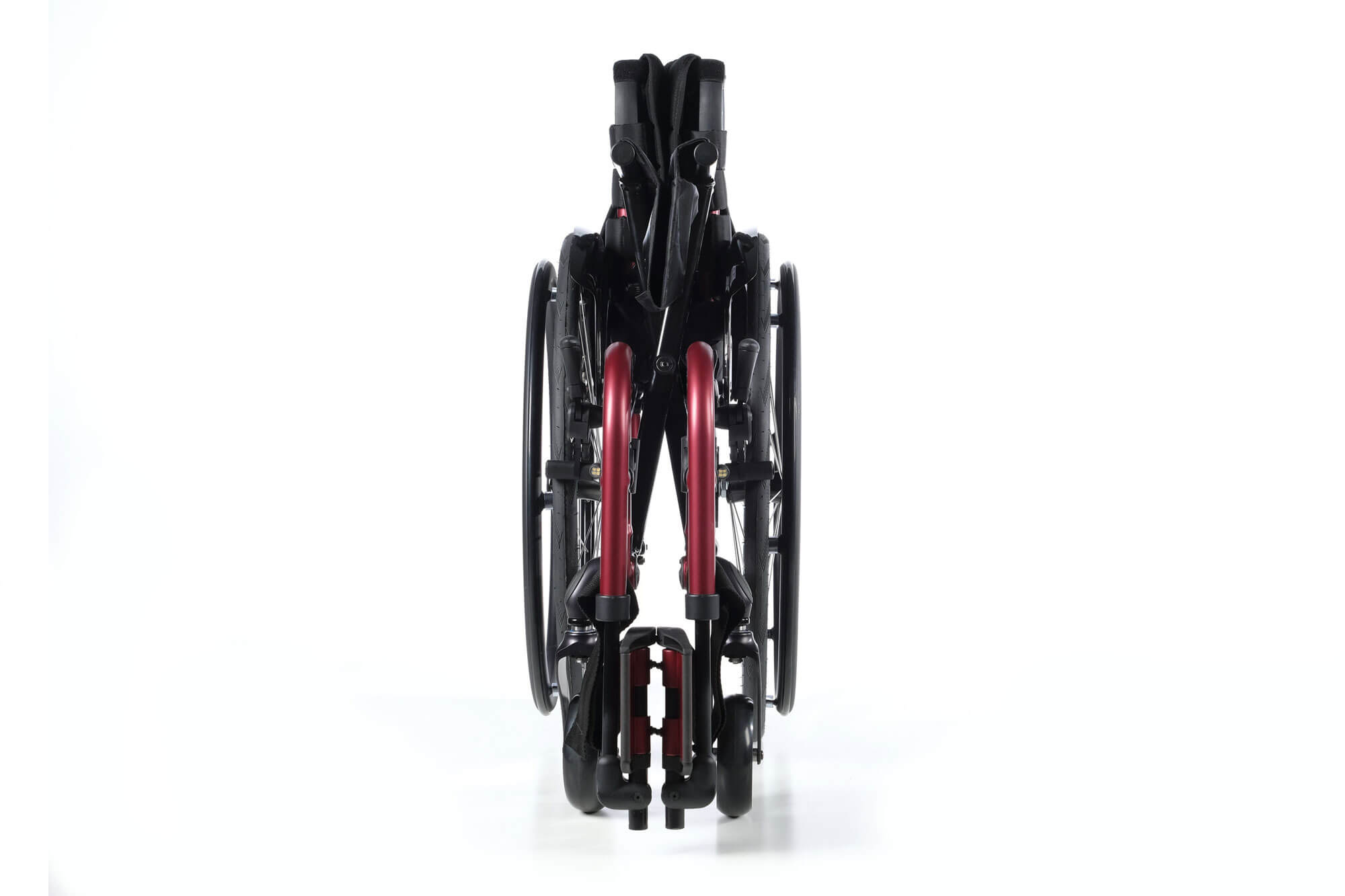

The QUICKIE QS5 X wheelchair introduces 'FreeFold', a pioneering cross-brace mechanism that significantly lowers the effort needed to fold, cutting folding energy by more than 40%. Additionally, it offers an optional folding lock feature that secures the wheelchair firmly, ensuring it remains closed during transport for enhanced safety and convenience.
The QUICKIE QS5 X stands out with an exceptionally low transport weight, starting at just 7.3 kg for the Fixed Front and 7.5 kg for the Swing Away frame. As the lightest aluminum folding box frame available, it offers ease in lifting and transport while enhancing the user’s energy efficiency through effortless self-propulsion.
Fixed-Front or Swing-Away? - The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.
Bright removable LED lights.
In many situations, it’s good to have your own light - if you need to go to the bathroom at night and don’t want to illuminate the whole apartment, or if you’re on your way home in the evening and need to see obstacles that could throw you off balance. The QS5 X’s LED lights are a great solution! Discreetly integrated into the overall design of your QS5 X, and removable for charging, the LED lights provide a great feature to light your way when you need them!
Dimensions
Width: SW + 180/240/270 mm at 0, 2, 4° camber and 25" wheels
Length: 1113 mm
Height: 1020 mm
Seat Width: 340 - 540 mm (in 20 mm steps)
Seat Depth: 340 - 500 mm
Front seat height: 360 - 540 mm
Rear seat height: 350 - 520 mm
Backrest Height: 250 - 500 mm
Frame Angle: Swing Away: 70/80/90°, Fixed-Front: 75/85°
Maximum Safe Slope: 7°
Rear Wheel Size: 22", 24", 25", 26"
Front Wheel Size: 4", 5", 6", 7"
Colours: 22
Performance/Weights
Frame Type: Folding
Frame Version: Swing Away / Fixed Front
Material: 7000 Series Aluminium
Maximum User Weight: 140 kg
Total Weight: Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg
Dismantled Weight: Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)
Transportation
Crash Tested? - This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
